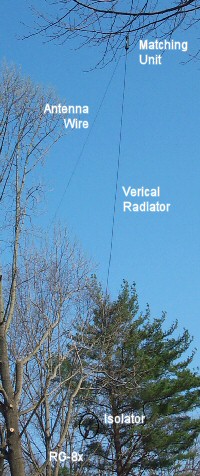

Radio Works Carolina Windom 160 "Special"
50 feet (15.2m) high flat-top installation
#12, 259 strand insulated copper wire option
I spray painted the normally white matching unit & isolator black
Oriented 120°- 300°
Installed 3 April, 2004
Suspended between two trees 160 feet ( 49m) apart

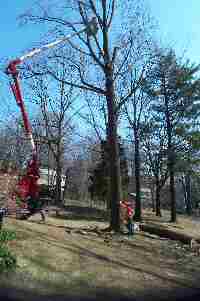

      Attached to 5/16-inch (0.8 cm) black dacron rope routed through
        marine swivel pulleys screwed to the trees.  The rope is tied off
        at ground level on each side.  One side includes a heavy duty
        spring with 31 lbs. ( 14 kg) pull in order to maintain tension
        and compensate for tree movement.   A 1.5 lb. ( 680g) weight is
        attached at the end of each rope near the antenna insulator.
        When the antenna breaks, the weights are sufficient to bring the
        rope back to ground level.
75 feet ( 22.9m) of RG-8x coax connects the isolator to the shack
An ICE 300/U Impulse Suppressor / Arrestor is used before
        entering the shack
Three eight foot ground rods are used for the system ground
